| Specifications | |
| Pixel Pitch (mm): | 2.9 / 3.9 / 4.8 / 5.2 / 6.25 |
| Brightness (nits): | up to 5500 |
| Refresh Rate(Hz): | 1920-3840 |

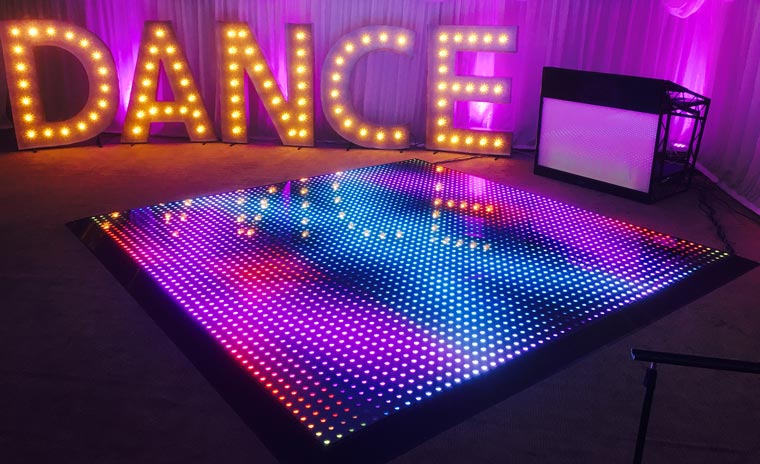

| Application: | Indoor & Outdoor LED Dance Floor |

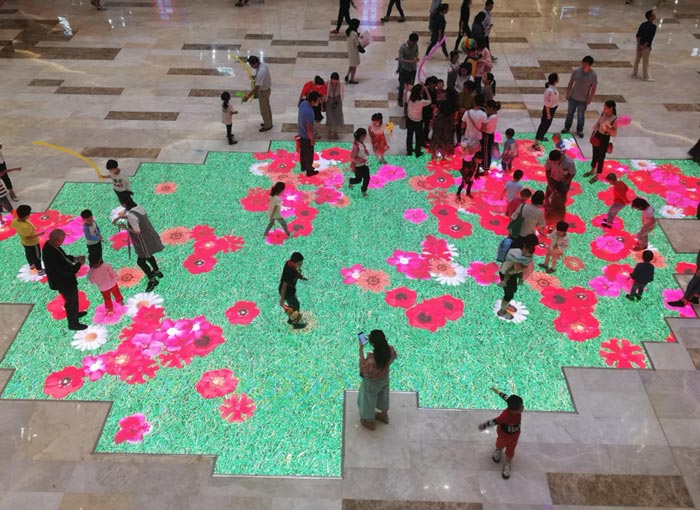

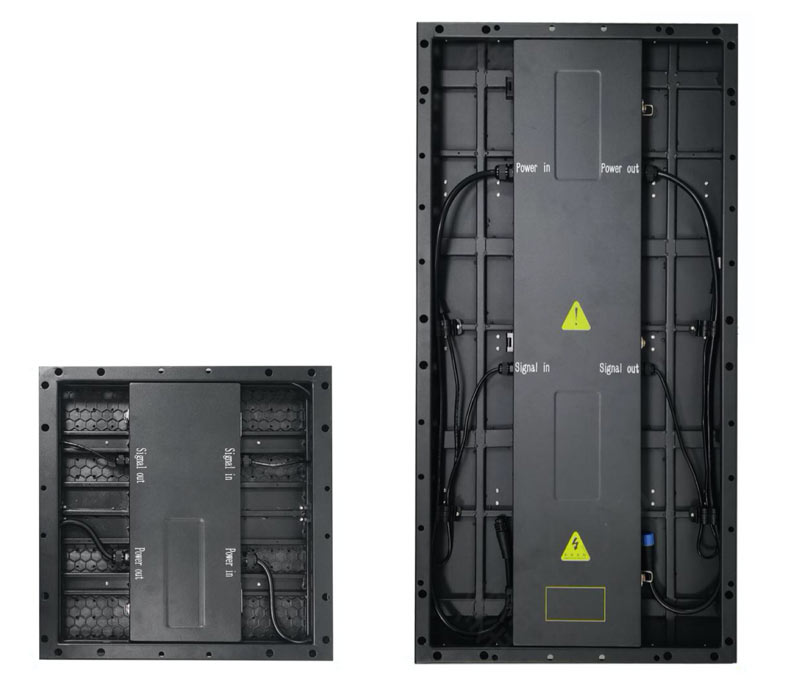

Cinstar D series interactive LED dance floor screen has two panel sizes for your choose. You can greatly save budget with 500x1000mm and can do any desired sizes by applying extra 500x500mm panels.
Cinstar D series creative LED dance floor screen offers wide range of options for your projects from high profile to budget ones with varied specifications of steel or die-cast aluminum panel, Radar interactive or smart interactive with built-in IC. We are capable of supplying a turn key solution for your projects.

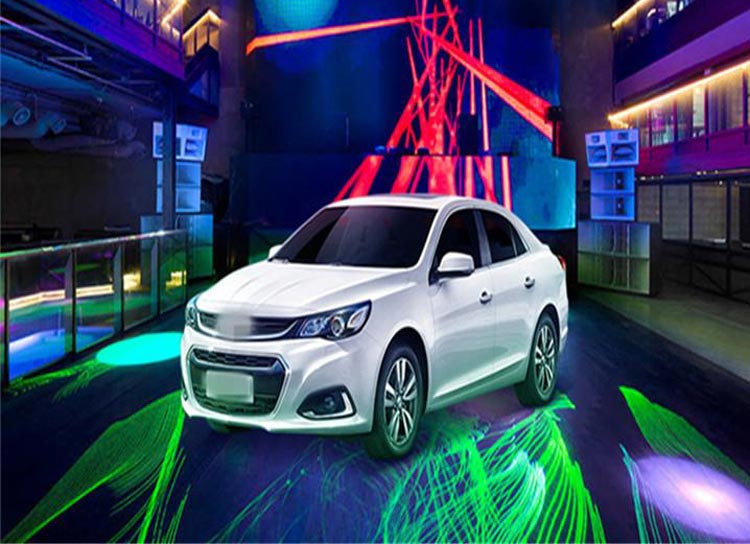

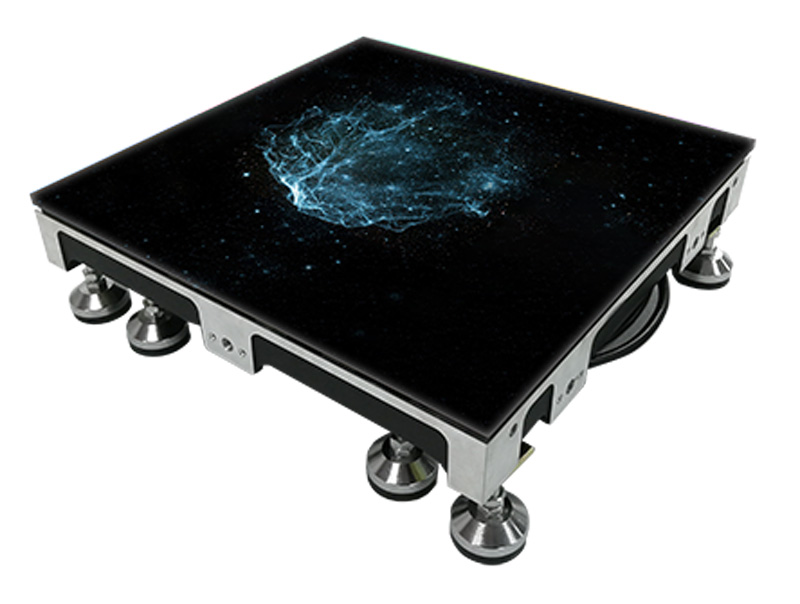

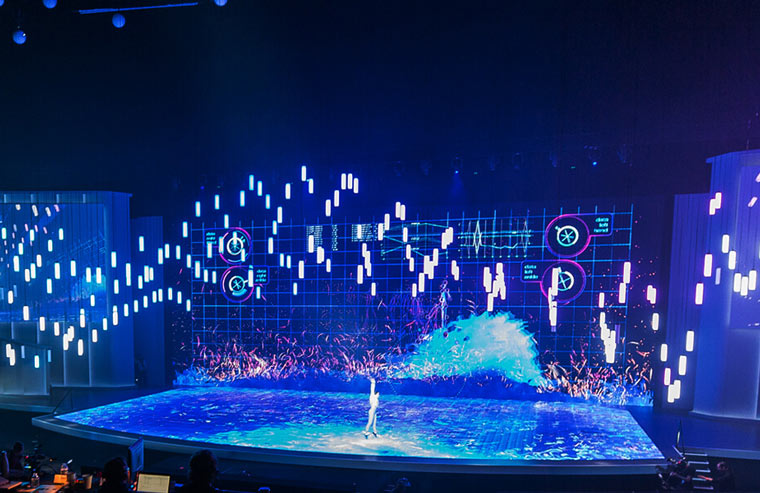

Featured with robust panel frame, point-to-face contact and support technology, the weight capacity of Cinstar D series LED dance floor is more than 3000kg/sqm, which makes it a reliable floor video solution for stage events, TV studio and Car show etc.
Cinstar D series LED floor screen adopts special high quality durable module mask to make sure the screen surface is non-slip for people to walk and dancing on it. Its great durability can also protect the LEDs from damage.
Two panel sizes for option
Wide range of pixel pitches
Budget and high profile solutions
Excellent load-bearing performance
Durable module mask for skid resistance
Smart interactive LED floor screen
| D2.9 | D3.9 | D4.8 | D6.2 | D3.9 (Outdoor) | D5.2 (Outdoor) | D6.2 (Outdoor) | |
| Pixel Pitch (mm) | 2.97 | 3.91 | 4.81 | 6.25 | 3.91 | 5.2 | 6.25 |
| LED Type | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Module Size (mm) | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 |
| Panel Size (WxH)/(mm) | 500x500 / 500x1000 | 500x500 / 500x1000 | 500x500 / 500x1000 | 500x500 / 500x1000 | 500x500 / 500x1000 | 500x500 / 500x1000 | 500x500 / 500x1000 |
| Pixel Per Panel | 168x168 / 168x336 | 128x128 / 128x256 | 104x104 / 104x208 | 80x80 / 80x160 | 128x128 / 128x256 | 96x96 / 96x192 | 80x80 / 80x160 |
| Panel Material | Steel / Die-cast Aluminum | Steel / Die-cast Aluminum | Steel / Die-cast Aluminum | Steel / Die-cast Aluminum | Steel / Die-cast Aluminum | Steel / Die-cast Aluminum | Steel / Die-cast Aluminum |
| Brightness (nit) | > 1000 | > 1000 | > 1000 | > 1000 | > 5500 | > 5500 | > 5500 |
| Refresh Rate (Hz) | < 3840 | < 3840 | < 3840 | < 3840 | < 3840 | < 3840 | < 3840 |
| Gray Scale (bit) | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Viewing Angle (H/V) (°) | 140/140 | 140/140 | 140/140 | 140 /140 | 140/140 | 140/140 | 140 /140 |
| AC Operating Voltage (V) | 110~220 (±5%） | 110~220 (±5%） | 110~220 (±5%） | 110~220 (±5%） | 110~220 (±5%） | 110~220 (±5%） | 110~220 (±5%） |
| Operating Temperature (℃) | ﹣20~﹢60 | ﹣20~﹢60 | ﹣20~﹢60 | ﹣20~﹢60 | ﹣20~﹢60 | ﹣20~﹢60 | ﹣20~﹢60 |
| IP Rating (Front/Rear) | IP22 | IP22 | IP22 | IP22 | IP65 | IP65 | IP65 |
| LED Lifetime (H) | 100000 | 100000 | 100000 | 100000 | 100000 | 100000 | 100000 |
