| Specifications | |
| Pixel Pitch (mm): | 4 / 5 / 6.67 / 8 / 10 |
| Brightness (nits): | >6000 |
| Refresh Rate(Hz): | <3840 |
| Application: | Outdoor Advertising |

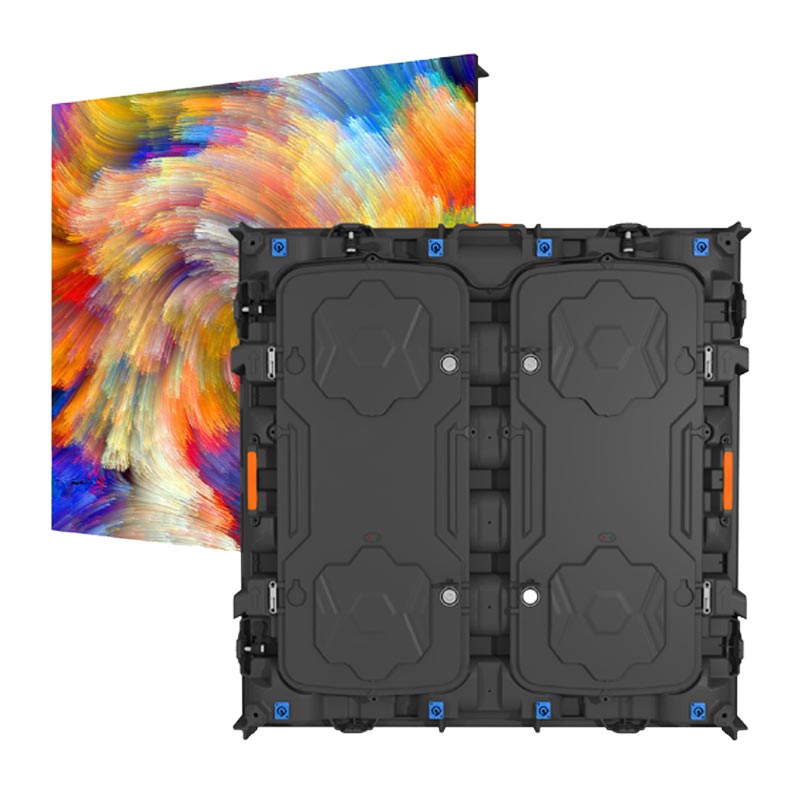

Featuring magnesium alloy material with high precision CNC technology, Cinstar MA series outdoor advertising billboard screen is with better flatness, supreme heat dissipation, lighter weight and more outstanding waterproof levels than traditional steel panels. A reliable advertising billboard will greatly increase your business values.
Pixel pitch ranges from 16mm to 4mm, no matter what screen size you are looking for, Cinstar MA series outdoor LED billboard can always ensure that your spectators can have a superb visual experience. More options is more possibilities!

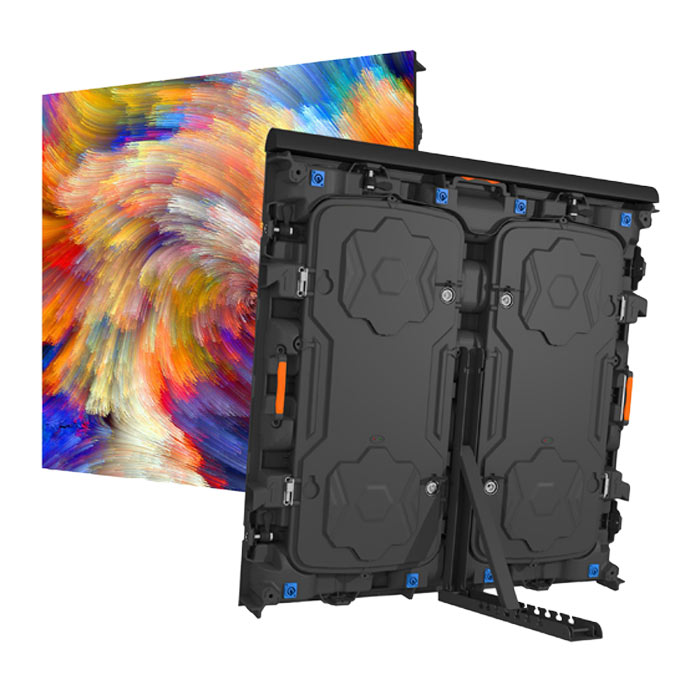

Cinstar MA series LED billboard display can be served as perimeter banner display by adding soft cushion (protect players from injury) on top and foldable brackets (adjustable to get best visibility for spectators). The soft mask can protect athletes from scratches by collision and LEDs from ball punches.

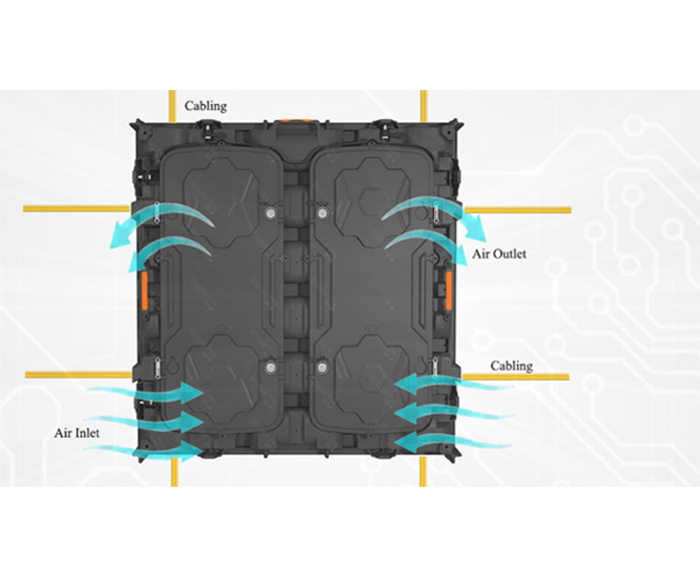

Each panel is installed 4 strong power fans to speed up the fresh air flow to take away the heat generated by power supplies and modules and maintain the best working temperature of LED display. All cables can be hidden inside the panels and cabling goes Left-to-right or Top-to-bottom. No any exposed cables, risk of cable problem and clean display appearance.

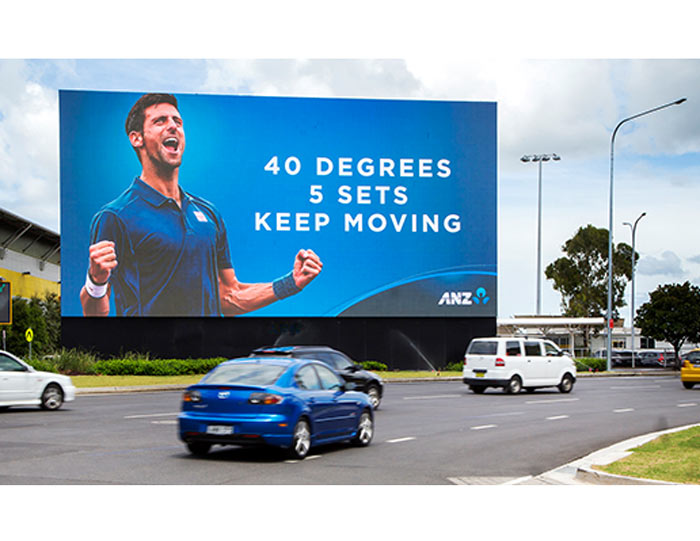

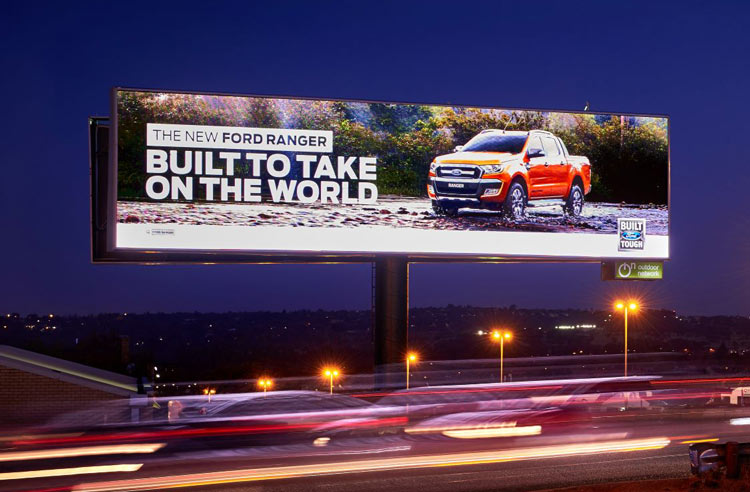

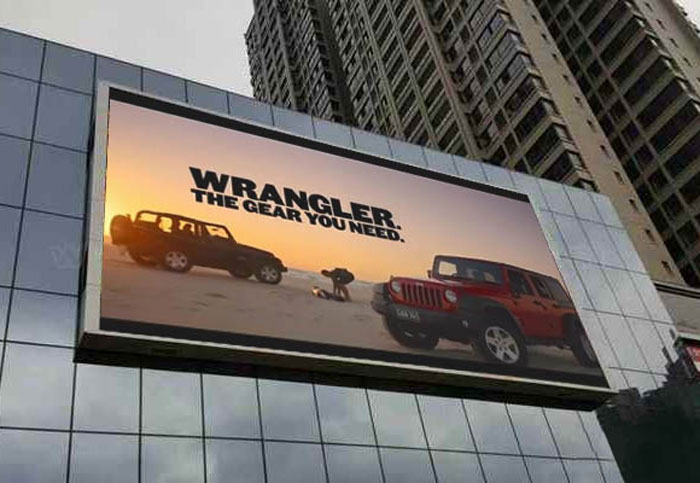

Cinstar MA series is an ideal solution for high profile outdoor commercial advertising applications. Its top stability, superb visibility and extraordinary image performance make it the new icon for outdoor billboard advertising at airport, train station, bus station, shopping mall, stadium, telecommunications and other commercial purposes.
Slim and light weight magnesium panel
Excellent heat dissipation and top stability
Wide pixel pitch for options
Compatible with perimeter banner design
Cost-effective LED outdoor billboard
Ideal outdoor advertising display solution
| MA4 | MA5 | MA6 | MA8 | MA10 | |
| Pixel Pitch (mm) | 4 | 5 | 6.67 | 8 | 10 |
| LED Type | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Module Size (WxH)/(mm) | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 |
| Panel Size (WxH)/(mm) | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 |
| Pixel Per Panel | 240x240 | 192x192 | 144x144 | 120x120 | 96x96 |
| Panel Material | Magnesium Alloy | Magnesium Alloy | Magnesium Alloy | Magnesium Alloy | Magnesium Alloy |
| Brightness (nit) | > 6500 | > 6500 | > 6500 | > 6500 | > 6500 |
| Refresh Rate (Hz) | > 1920 | > 1920 | > 1920 | > 1920 | > 1920 |
| Gray Scale (bit) | 16 | 16 | 16 | 16 | 16 |
| Viewing Angle (H/V) (°) | 140/140 | 140/140 | 140/140 | 140/140 | 140/140 |
| Operating Temperature (℃) | ﹣20~﹢60 | ﹣20~﹢60 | ﹣20~﹢60 | ﹣20~﹢60 | ﹣20~﹢60 |
| IP Rating (Front/Rear) | IP65 | IP65 | IP65 | IP65 | IP65 |
| LED Lifetime (H) | 100000 | 100000 | 100000 | 100000 | 100000 |
| Maintenance Method | Rear | Rear | Rear | Rear | Rear |
