| Specifications | |
| Pixel Pitch (mm): | 1.9 / 2.6 / 2.9 / 3.9 / 4.8 |
| Brightness (nits): | up to 5500 |
| Refresh Rate(Hz): | 1920-3840 |
| Application: | Fixed/Rental |
Designed specifically for quick and easy rental events markets, Cinstar N series LED video panels adopt high-precise and lightweight die-casting aluminum frame and easy to use reliable locking system to ensure quick installation and seamless image quality.

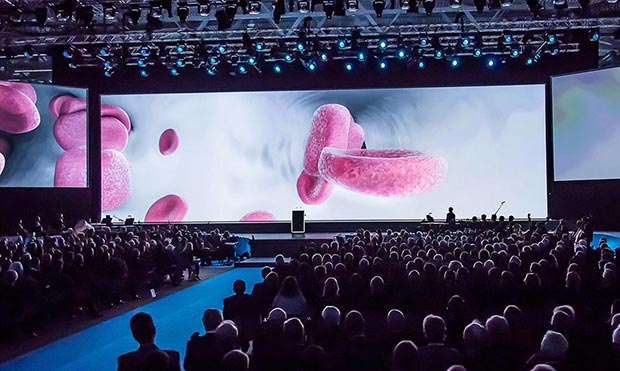

Featuring high brightness LEDs, Cinstar N series LED video displays deliver a great visual performance in any light condition. No matter it is outdoor sport event or live broadcast from mobile LED video display, the spectators can always get the vivid and clear images.
The integrated modular control unit at the back which containing power supply and receiving card, can be easily replaced even on site, reducing the servicing time and eliminate any unexpected surprises.
The indicator light and LCD info window on the control unit shows the working status of each LED panel and help locate and diagnose the problem when a failure happened.

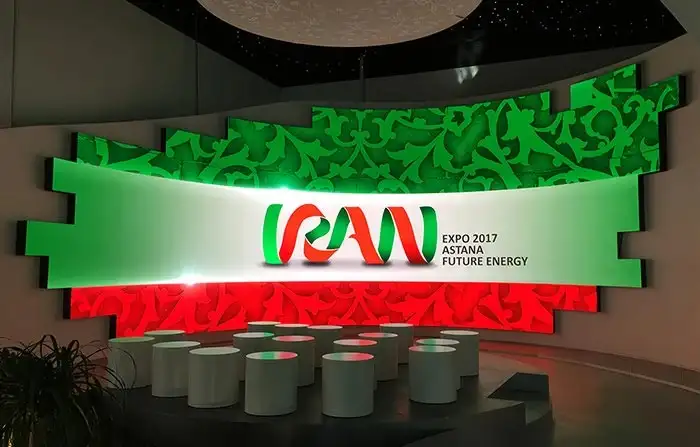

Cinstar N series LED video display supports any creative installation like suspension, ground stacking, concave or convex to meet any eye-catching visual designs.
Slim die-cast aluminum lightweight frame
Fast lock design simplifies installation procesures
500x500mm and 500x1000mm panesl for options
Modular control unit guarantees easy maintenance
Versatile installations, hanging, floor stacking or curved
Available in both indoor and outdoor options
| N2.6 | N2.9 | N3.9 | N2.9(Outdoor) | N3.9(Outdoor) | |
| Pixel Pitch (mm) | 2.6 | 2.97 | 3.91 | 2.97 | 3.91 |
| LED Type | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Module Size (WxH)/(mm) | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 |
| Panel Size (WxH)/(mm) | 500x500 / 500x1000 | 500x500 / 500x1000 | 500x500 / 500x1000 | 500x500 / 500x1000 | 500x500 / 500x1000 |
| Pixel Per Panel | 192x192 / 192x384 | 168x168 / 168x336 | 128x128 / 128x256 | 168x168 / 168x336 | 128x128 / 128x256 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Panel Weight (kg) | 7.5 / 14 | 7.5 / 14 | 7.5 / 14 | 7.8 / 14.5 | 7.8 / 14.5 |
| Brightness (nit) | > 1000 | > 1000 | > 1200 | > 5500 | > 5500 |
| Refresh Rate (Hz) | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 |
| Gray Scale (bit) | 16 | 16 | 16 | 16 | 16 |
| Viewing Angle (H/V) (°) | 160/160 | 160/160 | 160/160 | 160/140 | 160/140 |
| Avg. Power Consumption (W) | 240/sqm | 210/sqm | 218/sqm | 236/sqm | 243/sqm |
| Max. Power Consumption (W) | 720/sqm | 630/sqm | 654/sqm | 708/sqm | 729/sqm |
| Operating Temperature (℃) | ﹣20~﹢60 | ﹣20~﹢60 | ﹣20~﹢60 | ﹣20~﹢60 | ﹣20~﹢60 |
| IP Rating (Front/Rear) | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP65 | IP65 |
| LED Lifetime (H) | 100000 | 100000 | 100000 | 100000 | 100000 |
| Module Maintenance | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| PSU & Others Maintenance | Rear | Rear | Rear | Rear | Rear |
