| Specifications | |
| Pixel Pitch (mm): | 1.9 / 2.6 / 2.9 / 3.9 / 4.8 |
| Brightness (nits): | up to 5500 |
| Refresh Rate(Hz): | 1920-3840 |
| Application: | Fixed/Rental |
Aim to supply the most cost-effective rental LED video display solution for indoor and outdoor rental events applications, Cinstar T series utilizes high standard components selection to achieve high grey scale and refresh rate thereby making sure the ultimate image quality on Cinstar rental LED video display.
T series LED video display was designed with a maximum focus on practicability and reliability. The modular LED video panels are built around a robust and light weight die-casting aluminum frame, easy to operate and maintain.
With inbuilt feet and edge protectors, physical damage during transportation and assembly can be largely avoided and greatly improve its stability.
T series LED video display comes equipped with a classic fast locking system for rapid installation and dismantle, a flexible curving system allowing creative convex and concave set ups, suspension and floor stacking installation and convenient module front access service.

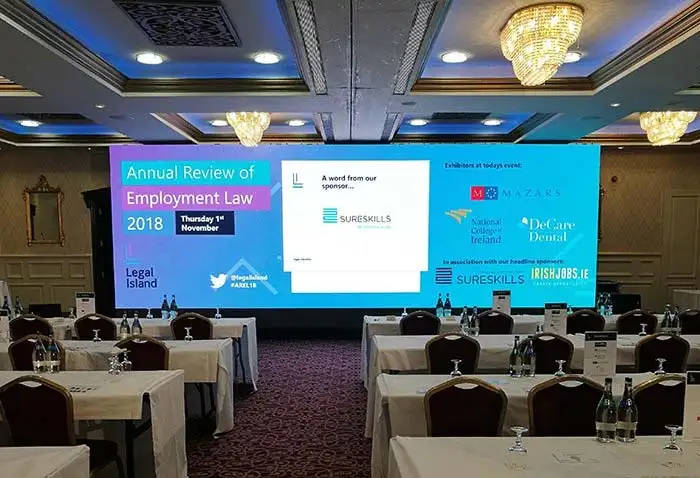

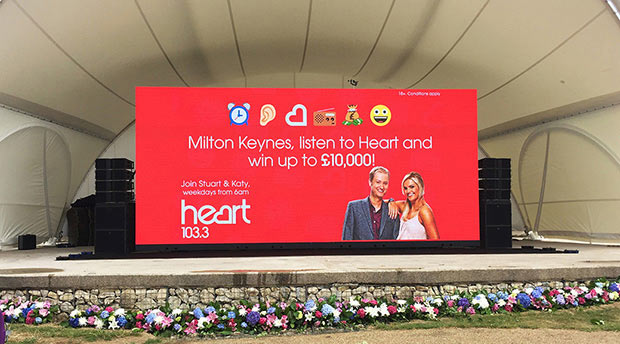

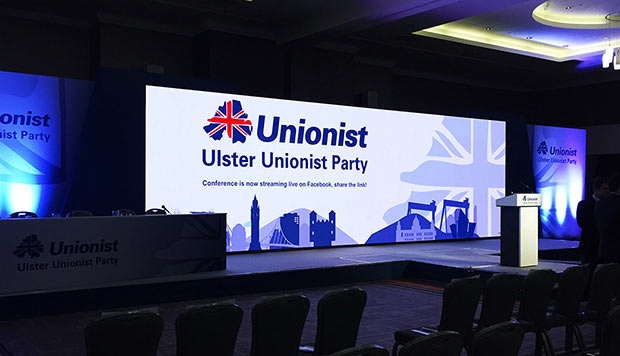

Cinstar T series LED video display is widely used at car show, wedding ceremony, fashion show, corporate exhibition and award ceremony to deliver ultimate visual impact.
High precision CNC ensures seamless screen connection
Ultra thin and light weight panel design
Quick changeable rear control unit
Ergonomically designed handle for convenient manipulation
Fast and durable lock system enables quick assemble and dismantle
Various installations include suspension, ground stacking or curved
| T2.6 | T2.9 | T3.9 | T2.9(Outdoor) | T3.9(Outdoor) | |
| Pixel Pitch (mm) | 2.6 | 2.97 | 3.91 | 2.97 | 3.91 |
| LED Type | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Module Size (WxH)/(mm) | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 |
| Panel Size (WxH)/(mm) | 500x500 / 500x1000 | 500x500 / 500x1000 | 500x500 / 500x1000 | 500x500 / 500x1000 | 500x500 / 500x1000 |
| Pixel Per Panel | 192x192 / 192x384 | 168x168 / 168x336 | 128x128 / 128x256 | 168x168 / 168x336 | 128x128 / 128x256 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Panel Weight (kg) | 7.5 / 14 | 7.5 / 14 | 7.5 / 14 | 7.8 / 14.5 | 7.8 / 14.5 |
| Brightness (nit) | > 1000 | > 1000 | > 1200 | > 5500 | > 5500 |
| Refresh Rate (Hz) | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 |
| Gray Scale (bit) | 16 | 16 | 16 | 16 | 16 |
| Viewing Angle (H/V) (°) | 160/160 | 160/160 | 160/160 | 160/140 | 160/140 |
| Avg. Power Consumption (W) | 240/sqm | 210/sqm | 218/sqm | 236/sqm | 243/sqm |
| Max. Power Consumption (W) | 720/sqm | 630/sqm | 654/sqm | 708/sqm | 729/sqm |
| Operating Temperature (℃) | ﹣20~﹢60 | ﹣20~﹢60 | ﹣20~﹢60 | ﹣20~﹢60 | ﹣20~﹢60 |
| IP Rating (Front/Rear) | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP65 | IP65 |
| LED Lifetime (H) | 100000 | 100000 | 100000 | 100000 | 100000 |
| Module Maintenance | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| PSU & Others Maintenance | Rear | Rear | Rear | Rear | Rear |
