| Specifications | |
| Pixel Pitch (mm): | 3.91 / 6.25 / 7.82 |
| Brightness (nits): | up to 5500 |
| Refresh Rate(Hz): | >1920 |
| Application: | Fixed/Rental |
Cinstar TR Series LED video display offers ultra-high transparency screens for rental events and commercial advertising installations. The pixel pitch ranges from 3.9mm to 7.8mm.
Advanced GOB technology can be adopted on this LED screen display to improve stability of the system (less LED falling when incident collision) and make it possible for outdoor waterproof applications. In addition, a transparent acrylic plate can be installed in front of the panel to protect LEDs, if needed.

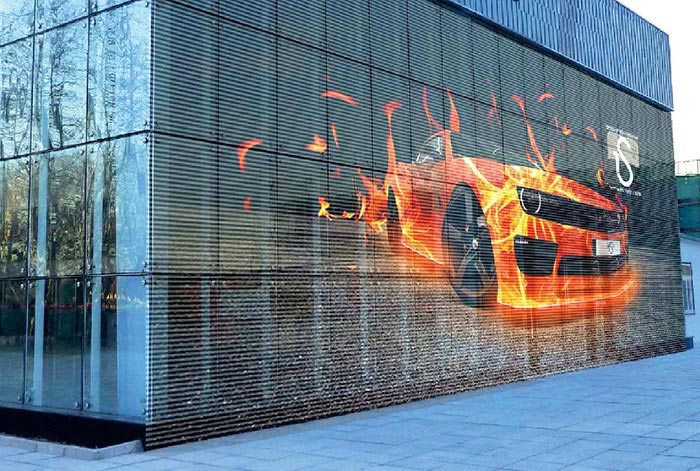

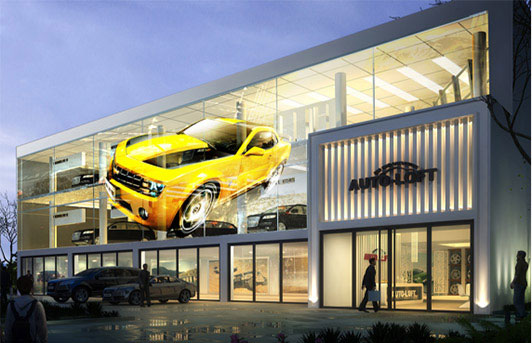

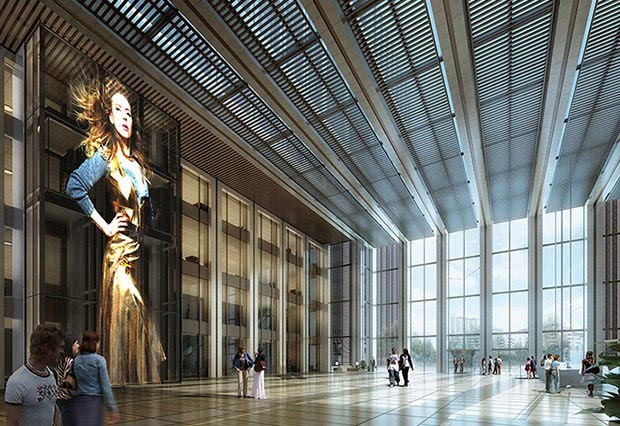

The fast locking system and giant installation pins ensure quick and easy installation. Which makes it excellent to be used as rental stage main background or creative effect display. The ultra-high transparency enables it a perfect choice for window installations such as shopping center, restaurant, jewelry store and fashion shop etc.
Featuring high brightness LEDs, high refresh rate driver IC, huge viewing angle, wide color gamut and anti-glowing, Cinstar TR series LED video display is capable of delivering a remarkable visual performance for any kind of installations.
Ultra high transparency up to 80%
High brightness up to 5000nits
Easy and quick installation
Customisable for specific applications
| TR3.91 | TR6.25 | TR7.82 | |
| Pixel Pitch (mm) | 3.91-7.82 | 6.25-6.25 | 7.82-7.82 |
| LED Type | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Panel Size (WxH)/(mm) | 1000x500 | 1000x500 | 1000x500 |
| Pixel Per Panel | 256x64 | 160x80 | 128x64 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Panel Weight (kg) | 7 | 7 | 7 |
| Brightness (nit) | >4500 | >4500 | >4500 |
| Refresh Rate (Hz) | >1920 | >1920 | >1920 |
| Gray Scale (bit) | 16 | 16 | 16 |
| Viewing Angle (H/V) (°) | 120/120 | 120/120 | 120/120 |
| AC Operating Voltage (V) | 110~220 (±5%） | 110~220 (±5%） | 110~220 (±5%） |
| Avg. Power Consumption (W) | 210/sqm | 220/sqm | 210/sqm |
| Max. Power Consumption (W) | 630/sqm | 660/sqm | 630/sqm |
| Storage Temperature (℃) | ﹣40~﹢60 | ﹣40~﹢60 | ﹣40~﹢60 |
| Operating Temperature (℃) | ﹣20~﹢60 | ﹣20~﹢60 | ﹣20~﹢60 |
| IP Rating (Front/Rear) | IP33 | IP33 | IP33 |
| LED Lifetime (H) | 100000 | 100000 | 100000 |
| Module Maintenance | Front | Front | Front |
| PSU & Others Maintenance | Rear | Rear | Rear |
| Certificate | CE FCC ETL RoHS | CE FCC ETL RoHS | CE FCC ETL RoHS |
