| Specifications | |
| Pixel Pitch (mm): | 2.8 / 3.9 / 7.8 / 10.4 / 15.6 |
| Brightness (nits): | up to 5500 |
| Refresh Rate(Hz): | >1920 |
| Application: | Indoor Fixed |
High transparency (up to 70%) ensures no any daylight or vision will be blocked out. High brightness of 3000-6000nits assures superb visual performance at any installation environments. Pixel pitch ranges from 2.8mm to 10.4mm.

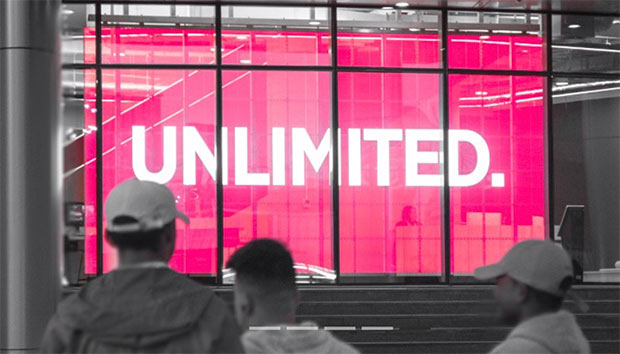

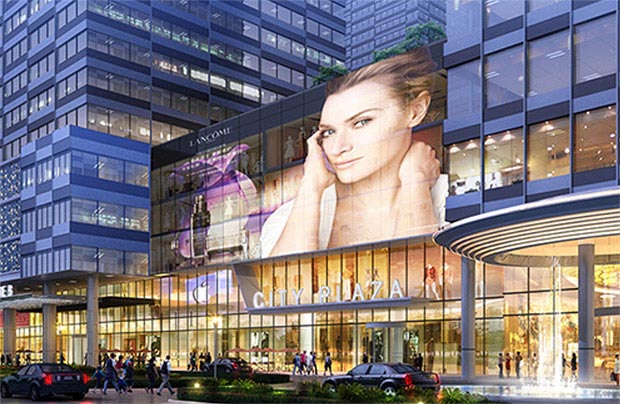

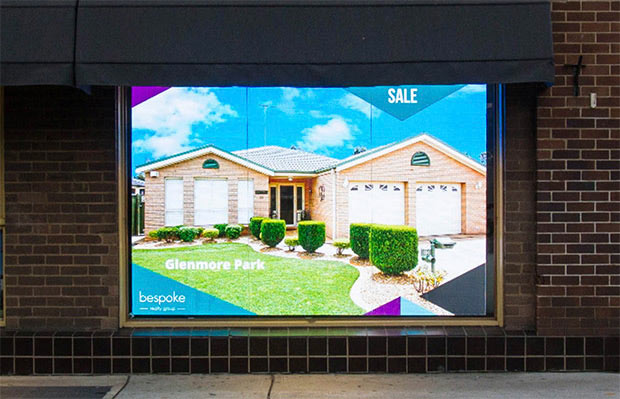

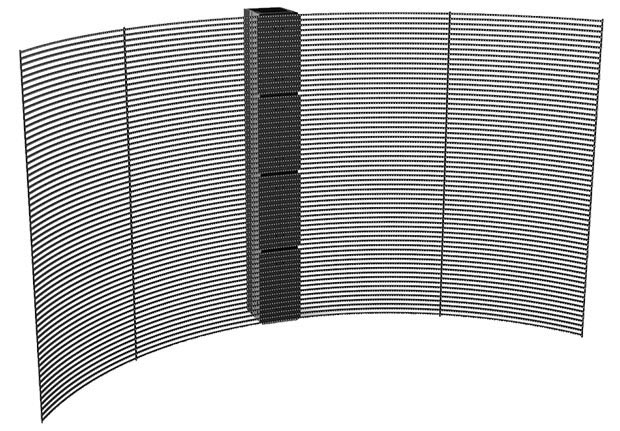

Cinstar TS series LED video display offers different panel designs for specific installations. It can be flat or flexible to create eye-catching design like big wave or cylinder screens. A perfect choice for shopping mall, Auto 4S store, exhibitions, concert and theater installations. What is more, the LED display panel can be customized to meet the glass wall building installation.

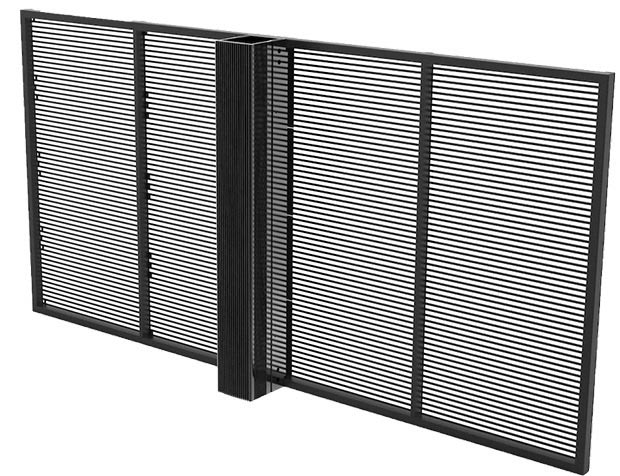

All cables hidden inside the rear vertical power box to make sure the whole screen looks concise and clean. The customizable color of panel frame makes it possible to merge into surroundings, which is perfect to achieve an immersive visual experience.
| TS2.8 | TS3.9 | TS7.8 | TS10.4 | TS15.6 | |
| Pixel Pitch (mm) | 2.8-5.7 | 3.91-7.82 | 7.82-7.82 | 10.4-10.4 | 15.62-15.62 |
| LED Type | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Panel Size (WxH)/(mm) | 1000x500 | 1000x500 | 1000x500 | 1000x500 | 1000x500 |
| Pixel Per Panel | 356x88 | 256x64 | 128x64 | 96x48 | 64x32 |
| Panel Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Panel Weight (kg) | 5 | 5 | 5 | 5 | 5 |
| Brightness (nit) | 800-6000 | 800-6000 | 800-6000 | 800-6000 | 800-6000 |
| Refresh Rate (Hz) | >1920 | >1920 | >1920 | >1920 | >1920 |
| Gray Scale (bit) | 16 | 16 | 16 | 16 | 16 |
| Viewing Angle (H/V) (°) | 120/120 | 120/120 | 120/120 | 120/120 | 120/120 |
| AC Operating Voltage (V) | 110~220 (±5%） | 110~220 (±5%） | 110~220 (±5%） | 110~220 (±5%） | 110~220 (±5%） |
| Avg. Power Consumption (W) | 210/sqm | 210/sqm | 210/sqm | 210/sqm | 210/sqm |
| Max. Power Consumption (W) | 630/sqm | 630/sqm | 630/sqm | 630/sqm | 630/sqm |
| Storage Temperature (℃) | ﹣40~﹢60 | ﹣40~﹢60 | ﹣40~﹢60 | ﹣40~﹢60 | ﹣40~﹢60 |
| Operating Temperature (℃) | ﹣20~﹢60 | ﹣20~﹢60 | ﹣20~﹢60 | ﹣20~﹢60 | ﹣20~﹢60 |
| IP Rating (Front/Rear) | IP22 | IP22 | IP22 | IP22 | IP22 |
| LED Lifetime (H) | 100000 | 100000 | 100000 | 100000 | 100000 |
| Module Maintenance | Front | Front | Front | Front | Front |
| PSU & Others Maintenance | Rear | Rear | Rear | Rear | Rear |
| Certificate | CE FCC ETL RoHS | CE FCC ETL RoHS | CE FCC ETL RoHS | CE FCC ETL RoHS | CE FCC ETL RoHS |
