| Specifications | |
| Pixel Pitch (mm): | 1.25 / 1.53 / 1.86 / 2.5 |
| Brightness (nits): | up to 900 |
| Refresh Rate(Hz): | > 3840 |
| Application: | TV Studio / Conference Room / Control Room |

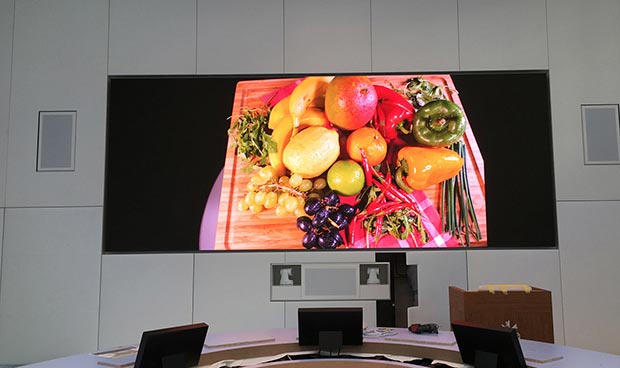

Cinstar V series LED video wall offers the very versatile fine pixel pitch LED screen display solutions for direct-view video signage applications where a narrow pixel pitch LED video wall is needed in a fixed installation scenarios like TV broadcasting studios, conference room, traffic control rooms, boardrooms etc. Pixel pith available from 1.2mm to 2.5mm

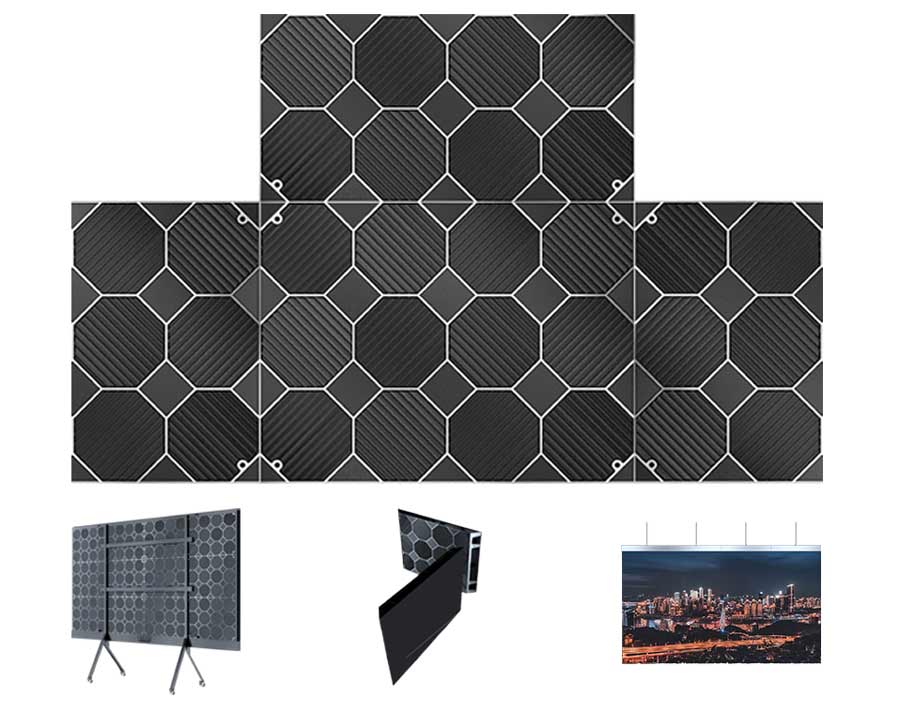

Cinstar V Series LED video wall panel size can be tailored for specific project requirements. It optimizes all the possible installations including wall mounting, suspension or all-in-one ground supporting. It can be a giant LED video wall to control room, UHD TV to home cinema or smart LED digital poster screen for commercial advertising.

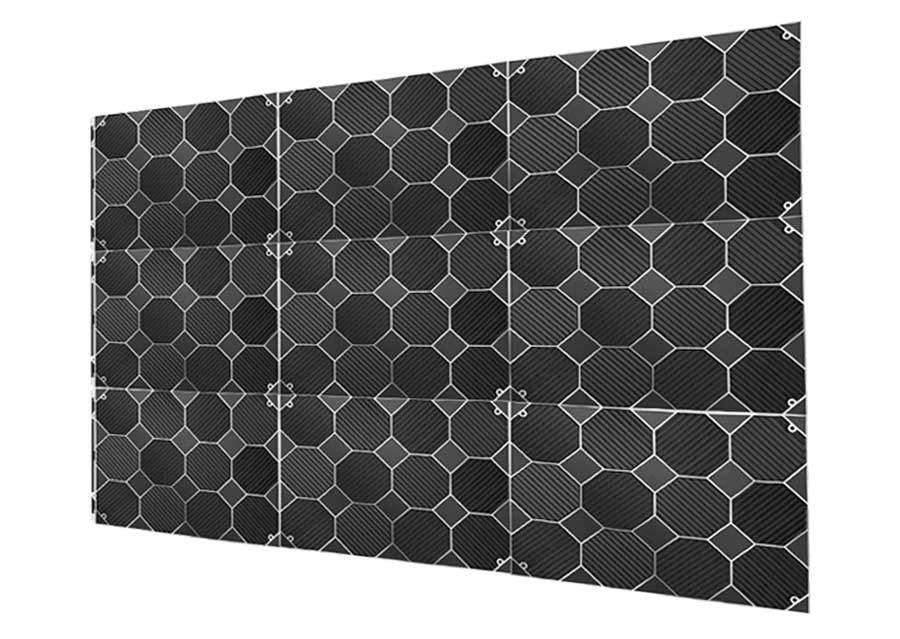

Cinstar V Series LED video wall applies innovative invisible built-in cable connection, ensuring super clean rear appearance and great visual enjoyment. No jumper cable design makes an easier installation work on site and secures better stability and failure rate.

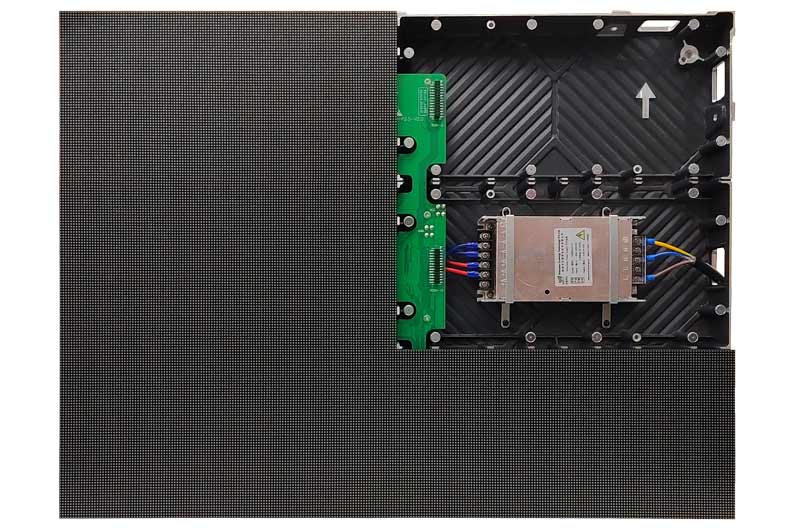

Cinstar V series LED video wall can be installed and maintained from front to ultimately save the space at rear side when for wall mounted installation. The hot swappable module makes the maintenance work extremely easy to be performed. A layman can do it well!

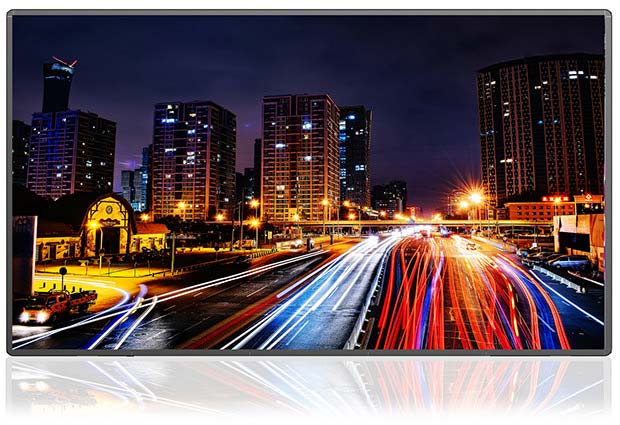

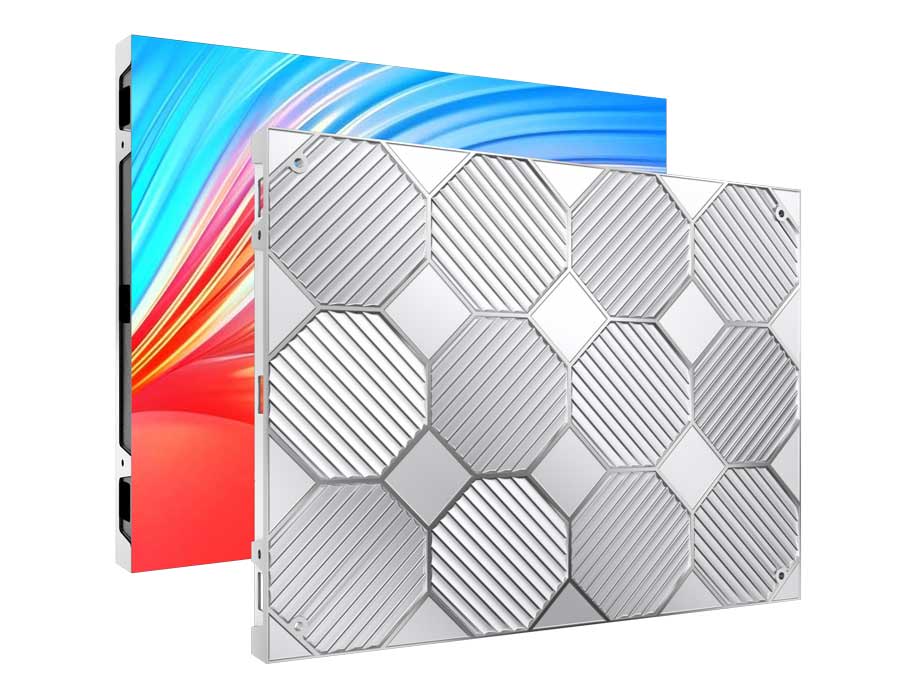

The sleek and seamless high definition LED video wall is capable of delivering an optimal visual performance with high refresh rate, excellent greyscale levels, high contrast ratio and wide color gamut. The ultra-high precision aluminum panel allowing excellent heat dissipation for enhanced power efficiency and silent performance.
Superb visual performance
High contrast and wide colour gamut
Versatile installation solutions
Super slim light weight panel
Both front and rear maintenance options
Convection cooled, no fans on board
| V1.2 | V1.5 | V1.8 | V2.5 | |
| Pixel Pitch (mm) | 1.25 | 1.53 | 1.86 | 2.5 |
| LED Type | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Panel Size (WxH)/(mm) | 640x480 | 640x480 | 640x480 | 640x480 |
| Pixel Per Panel | 512x384 | 416x312 | 344x258 | 256x192 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Panel Weight (kg) | 7.5 | 7.5 | 7.5 | 7.5 |
| Module Size (WxH)/(mm) | 320x160 | 320x160 | 320x160 | 320x160 |
| Brightness (nit) | ≥ 500 | ≥ 500 | ≥ 500 | ≥ 500 |
| Refresh Rate (Hz) | ≥ 3840 | ≥ 3840 | ≥ 3840 | ≥ 3840 |
| Gray Scale (bit) | 16 | 16 | 16 | 16 |
| Viewing Angle (H/V) (°) | 160/160 | 160/160 | 160/160 | 160/160 |
| AC Operating Voltage (V) | 110~240 (±5%） | 110~240 (±5%） | 110~240 (±5%） | 110~240 (±5%） |
| Avg. Power Consumption (W) | 200/sqm | 200/sqm | 200/sqm | 200/sqm |
| Max. Power Consumption (W) | 600/sqm | 600/sqm | 600/sqm | 600/sqm |
| Storage Temperature (℃) | ﹣40~﹢60 | ﹣40~﹢60 | ﹣40~﹢60 | ﹣40~﹢60 |
| Operating Temperature (℃) | ﹣20~﹢60 | ﹣20~﹢60 | ﹣20~﹢60 | ﹣20~﹢60 |
| IP Rating (Front/Rear) | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP65/IP54 |
| LED Lifetime (H) | 100000 | 100000 | 100000 | 100000 |
| Module Maintenance | Front | Front | Front | Front |
| PSU & Others Maintenance | Front | Front | Front | Front |
| Certificate | CE FCC ETL RoHS | CE FCC ETL RoHS | CE FCC ETL RoHS | CE FCC ETL RoHS |
